In the current days, technology has become the forefront of our lives and protecting our appliances and electrical systems is more important. Most people think of devices that are installed on AC power lines when it comes to surge protection, but the need for DC surge protection devices has become more increasing in the recent years. This is due to the rise of renewable energy systems and continuous increase of DC powered devices. The illustrated below are working principles, importance and how DC surge protection devices safeguard our electrical systems.
· DC surge protection devices commonly known as DC SPDs are electric devices premeditated to guard DC-powered apparatus and structures from swift electrical energy spikes triggered by momentary voltage proceedings. The lightning strikes, switching operations, electromagnetic interference (EMI), or power supply faults causes the spikes.
· The primary function of a DC Surge Protector is regulating the quantity of current that is passed through to the downstream paraphernalia and sidetracking excessive energy safely to the minced. Hence it assists in preventing potential damage to sensitive equipment that include batteries, inverters, rectifiers, and other vital machineries within a DC power system.
· With a decent installation procedure, you will be in the position of covering a lot of loses that can result from the spikes. The dangers of these voltage spikes include fire outbreak, or even electrocution hazards.
· Due to the swelling usage of renewable energy schemes as noted earlier, example; wind turbines and solar photovoltaic (PV) panels. These systems typically generate DC power, which needs to be appropriately protected from random voltage outpourings. This has aided to a higher request for DC surge protection devices.
· With a standard mounting rail, this tight buckle firmly stick guide rail installation is vital, you are advised to use it worry-free. All sequestered terminal, that is large hole threaded terminal rail type wiring is firmer and convenient.
· Moreover, there is need for effective surge protection as more electronic devices, such as data centers, telecommunications systems, and electric vehicles, rely on DC power. Sensitive electronics and equipment can be irreparably damaged, leading to costly downtime and potential safety risks if the is inadequacy in protection.

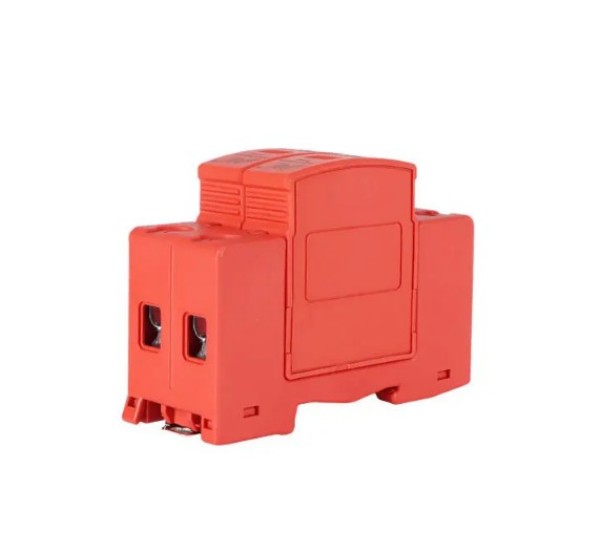

It is vital to interact with the product interface; this will enable you to understand the right product to purchase. Zhejiang Mulang Electric Co., Ltd. Manufacture quality DC SPDs with their unique logo, powered by MLY1-C40 at a DC1000V and above.
DC surge protection devices consist of various components working together to redirect the surge current and protect downstream devices. The key components include;
- MLY 1 modular
- Metal oxide varistors (MOVs)
- Gas discharge tubes (GDTs)
- Transient voltage suppression diodes (TVS diodes)
Fuses
This surge protector is utilized to guard the surge led by lighting also instantaneous overvoltage. Helps to release the surge huge energy on the power line to the Earth that is in the ground to limit the over-energy.
MOVs are nonlinear voltage-dependent controllers that retort to voltage spikes by giving a low-confrontation trail for the extra energy. They engross the surge current and sidetrack it safely to the ground, defensing the associated apparatus.
GDTs are hermetically sealed devices filled with sluggish gases that ionize when exposed to a high voltage. They create a conductive lane for the surge energy, efficiently fastening the power and readdressing the energy away from the subtle equipment.
TVS diodes are semiconductor devices designed to distract fleeting energy away from delicate electronics. They have low breakdown voltages and respond rapidly to voltage spikes, shunting the excessive current to the ground.
Fuses act as shielding expedients by intruding the flow of unnecessary current. They are sacrificial mechanisms that liquefy when an energy surge surpasses their rated volume, stopping more harm to the linked apparatus.
There are user guidelines you are supposed to flow after purchasing these DC SPDs to guard your electrical items. These include;
- Use it between 50Hz and 60Hz AC
- Install it below 2000m above sea level
- Operating environment temperature -40, +80
- With MLY1, voltage of the terminal should not exceed its maximum continues working voltage
- A standard 35mm guide rail installation
When a voltage surge occurs, the DC surge protection device detects the excess voltage and activates the protection mechanism. The MOVs, GDTs, and TVS diodes provide low-resistance paths for the surge current, diverting it safely to the ground.
The fuses, on the other hand, act as the final line of defense by interrupting the current flow if it exceeds the device’s maximum rating. By adequately limiting the voltage spikes, DC SPDs ensure that downstream equipment receive a stable and protected power supply.
The major advantage of using DC surge fortification devices is preservation of the linked equipment from voltage surges. Lifespan of equipment is extended due to the prevention of costly damages and downtime through diversion of extreme power away.
Voltage surges can pose significant safety risks, particularly in high-risk environments such as data centers or electric vehicle charging stations. DC SPDs provide an additional layer of safety by minimizing the possibility of fire hazards, electrical shocks, or equipment failures.
Electrical systems can perform more reliably with DC surge protection devices in domicile. The reduced risk of sudden failures or malfunctions ensures uninterrupted power supply, leading to enhanced productivity and customer satisfaction.
In the current world where electronic devices and renewable energy systems have played a vital role to our lives of safeguarding us from voltage surges dangers cannot be measured. DC surge protection devices serve as critical components in protecting DC-powered equipment and systems from transient voltage events. It is crucial to understand the working principles, and the benefits they offer as this can guarantee reliable and long-lasting maneuver of our lives and electrical setup. Consider investing in DC SPDs to mitigate the risks associated with voltage surges and preserve our valuable assets such as PV system on your roof or a critical telecommunications network.
